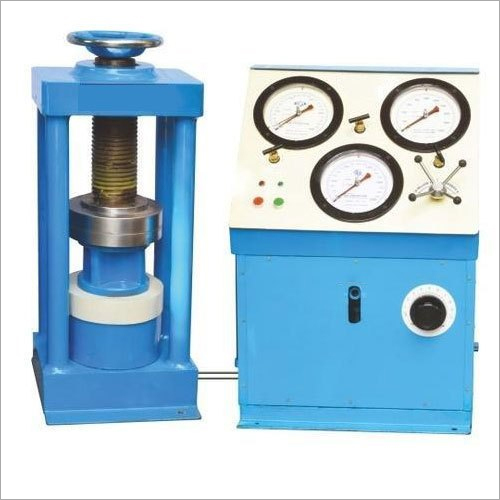

CTM Compression Testing Machine

Name: CTM Compression Testing Machine
Brand: DS SURVEYORS PRIVATE LIMITED
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

CTM Compression Testing Machine Specification

Application
Testing compressive strength of concrete, bricks, blocks

Frequency
50 Hz

Temperature
5°C to 40°C

Power Supply
230V AC, 50 Hz

Mounting Type
Floor mounted

Accuracy
±1% of indicated load

Automation Grade
Manual / Semi-automatic

Interface Type
RS232 / USB (optional)

Display Type
Analog / Digital

Max Height
450 mm

Resolution
0.1 kN

Equipment Type
Compression Testing Machine

Number of Specimens
1 at a time

Operating Voltage
230V AC

Response Time
< 1 second

Port Size
Standard

Test Range
0 - 2000 kN

Measuring Range
0 - 2000 kN

Specimen Size
150 mm x 150 mm x 150 mm

Features
Heavy-duty body, safety guards, precise loading

Humidity
Up to 90% RH (non-condensing)

Usage
Laboratory, construction sites

Capacity
1000 kN, 2000 kN (as per model)

Machine Weight
Approx. 500 kg

Test Speed
0.5 - 5 mm/min (adjustable)

Test Width
150 mm

Test Stroke
100 mm

Control Mode
Manual / Motorized

Frame Type
C-Frame or Four Pillar (as per model)

Standards Compliance
IS 516, BS 1881, ASTM C39

Platen Size
220 mm dia upper & lower platen

Piston Travel
100 mm

Oil Capacity
10 liters

Cylinder Diameter
220 mm

Pressure Gauge
Digital / Analog

Calibration
Supplied with calibration certificate

Painting
Powder coated for corrosion resistance

Overload Protection
Provided

CTM Compression Testing Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA)

Supply Ability
10 Units Per Day

Delivery Time
10 Days

Main Domestic Market
Maharashtra

About CTM Compression Testing Machine

Compression Testing Machine: Make: LKV Hydraulics - Pressure Gauge - Hydraulic 150 Tons Capacity, Electrical Cum Hand Operated, Channel Type, Singal Gauge with 20 cm Diameter Pressure Gauge. Suitable Operation on 415 Volts Three Phase A.C. Supply. With company own Calibration Certificate Valid for Six Months.

High Precision Compression Testing

Designed for laboratory and onsite use, this CTM delivers reliable compressive strength measurements for concrete specimens. Its heavy-duty frame, available in C-Frame or Four Pillar models, ensures structural integrity and operator safety during testing. With quick response time and high measurement resolution, each test yields dependable results for quality assurance and research applications.

Flexible Operation and User-Friendly Controls

The machine caters to diverse testing requirements with its manual or motorized controls and variable test speeds. Digital and analog display options allow for clear load readings, while features such as overload protection and supplied calibration certificates ensure consistent operation. The robust floor-mounted design enhances usability for construction professionals and lab technicians alike.

FAQ's of CTM Compression Testing Machine:

Q: How is the CTM Compression Testing Machine calibrated?

A: Each CTM Compression Testing Machine is supplied with a calibration certificate, ensuring it meets accuracy standards set by IS 516, BS 1881, and ASTM C39. Calibration is performed prior to delivery, and regular recalibration is recommended based on usage or annually for optimal performance.

Q: What types of specimens can be tested on this machine?

A: This machine is designed to test compressive strength in concrete, brick, and block specimens, with a standard specimen size of 150 mm x 150 mm x 150 mm. The test width accommodates specimens up to 150 mm.

Q: Where can the CTM Compression Testing Machine be used?

A: It is suitable for use in laboratories, quality control departments, and construction sites, making it ideal for dealers, suppliers, research institutions, and construction professionals across India.

Q: What is the process for conducting a compression test using this machine?

A: Prepare and place a specimen on the platen, then select the desired test speed (0.5-5 mm/min). Initiate the test via manual or motorized controls. The compression force is applied until failure, displayed in real time. Results can be recorded via analog/digital gauges, with optional data transfer through RS232/USB interface.

Q: How does the machine ensure user safety during operation?

A: The CTM is equipped with overload protection, safety guards, and a durable, powder-coated body to safeguard operators against equipment failure or load exceedance during testing.

Q: What are the benefits of using this compression testing machine?

A: The CTM provides highly accurate (1% of indicated load) and reliable compressive strength measurements, robust build quality for prolonged use, compliance with international standards, and operational flexibility, making it a dependable choice for material testing.
